Aten

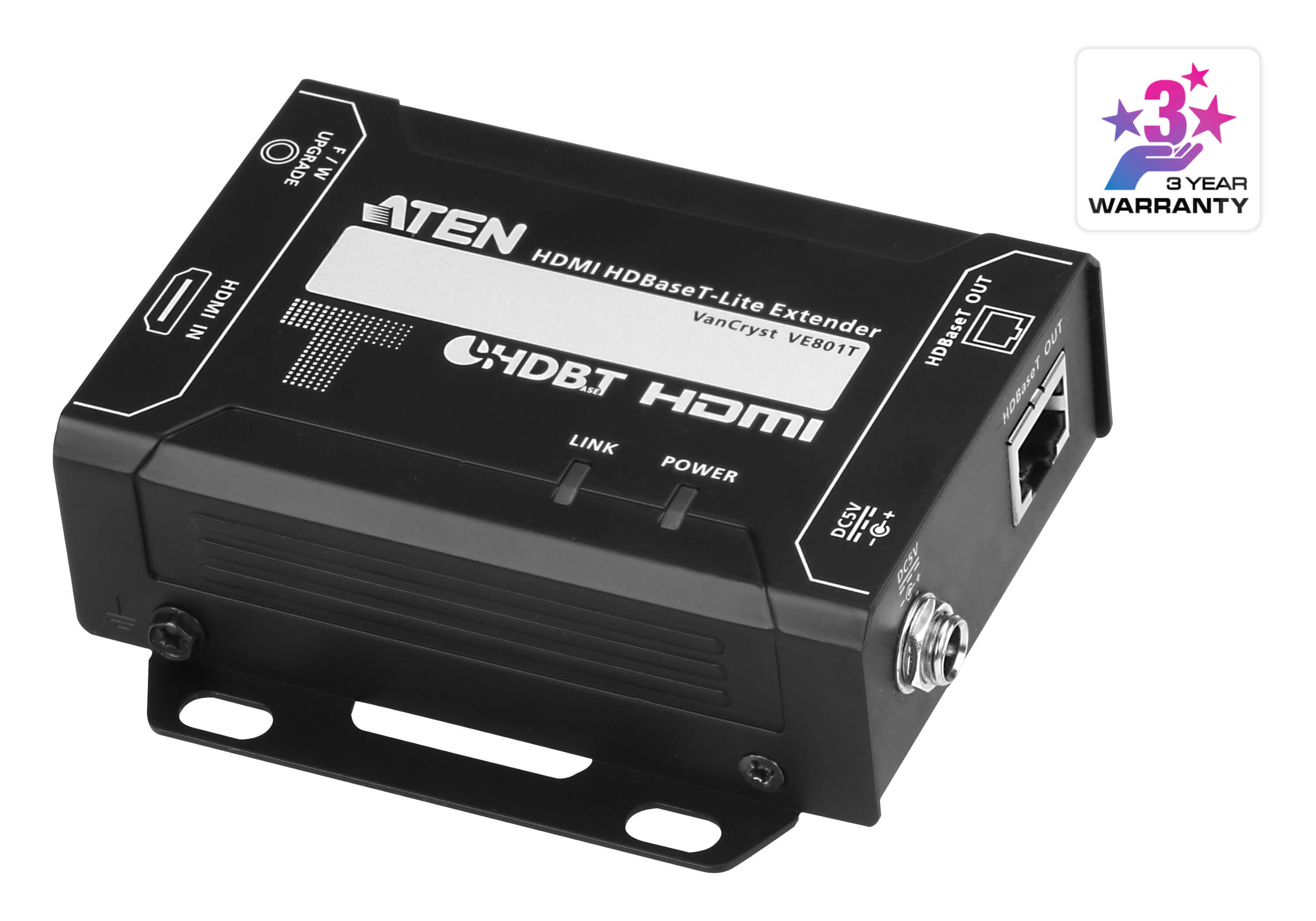

Aten HDMI HDBaseT-Lite Transmitter, supports 1080p @ 70m and 4096 x 2160 @ 30 HZ (4:4:4) @ 40m over Cat 6A VE801T-AT-U

$209.33 Inc GST

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances. Plug-and-play Rack-mountable Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100Ω Max. Distance 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black) Connectors Power 1 x DC Jack (Black) with locking Unit To Unit 1 x RJ-45 Female Power Consumption DC5V:1.86W:9BTU Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0% - 80% RH, Non-condensing Physical Properties Housing Metal KVM Switch & Video Video Extender

Product code: KVA-VE801T
