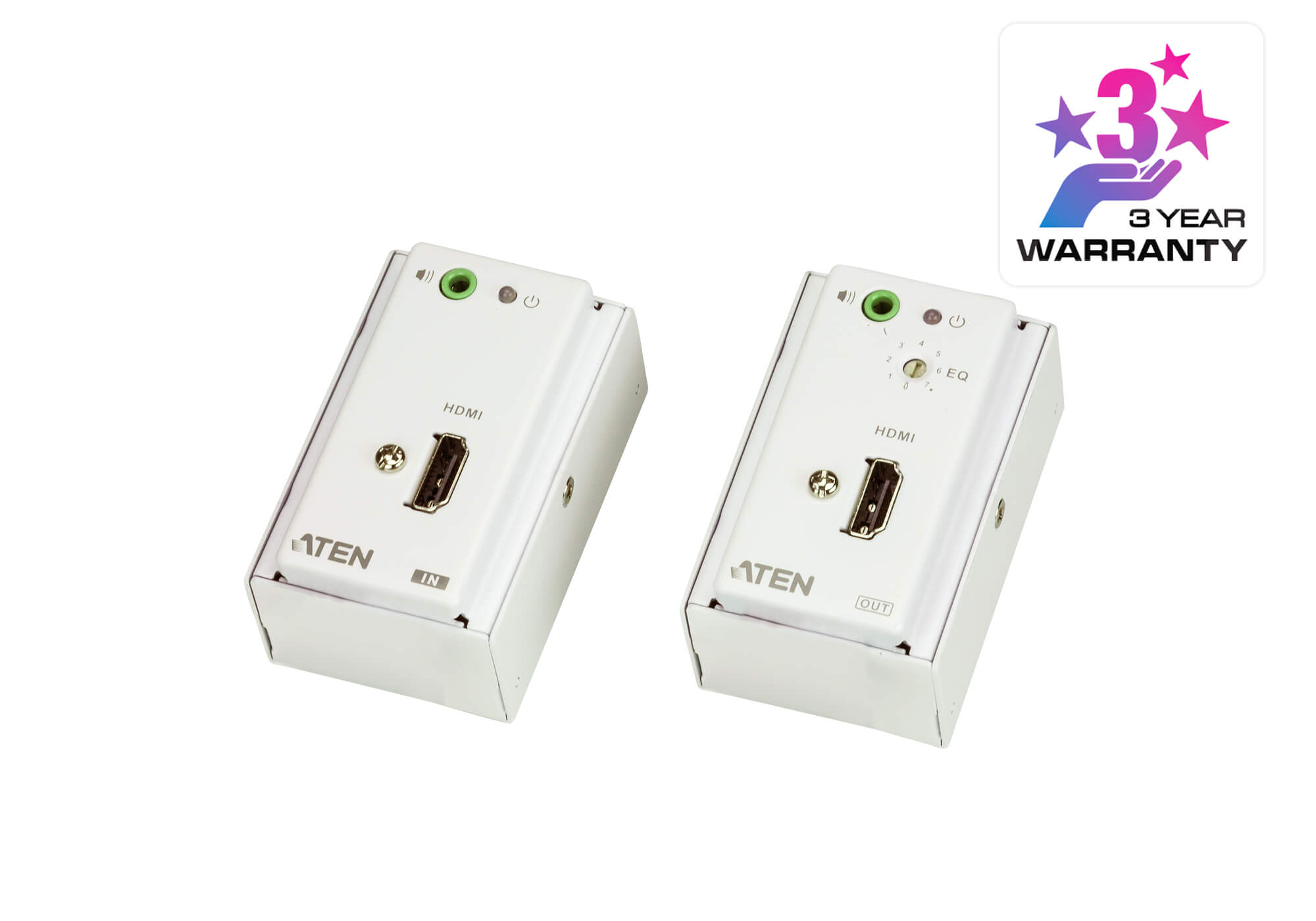

Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch VE807-AT-U

Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch VE807-AT-U

$242.00 Inc GST

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality. Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m VE807R VE807T Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP Compatible Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Audio 1 x HDMI Type A Female (Black) Power 1 x Terminal Block (Green) Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0-80% RH, Non-Condensing Housing Metal KVM Switch & Video Video Extender

Product code: KVA-VE807
