Aten

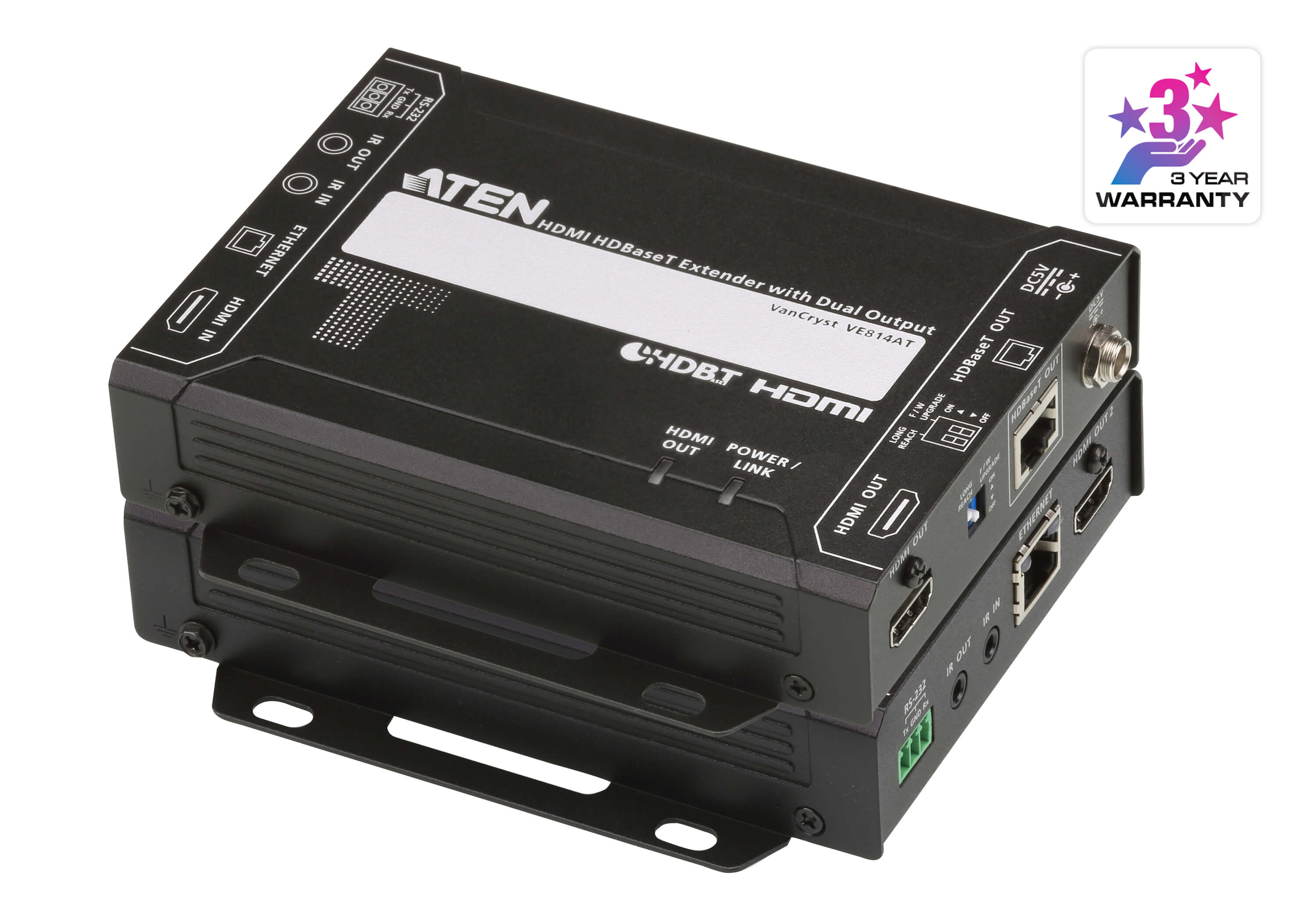

Aten HDMI HDBaseT Extender with Dual 4K Output, one local HDMI output, supports up to 4K@70m (Cat 5e/6) and 100m (Cat 6A), extends RS232 and IR VE814A-ATA-U

Aten HDMI HDBaseT Extender with Dual 4K Output, one local HDMI output, supports up to 4K@70m (Cat 5e/6) and 100m (Cat 6A), extends RS232 and IR VE814A-ATA-U

$960.74 Inc GST

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m. HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible Superior video quality: • 4K up to 100 m • 1080p up to 150 m when in HDBaseT Long Reach Mode ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners Supports wide screen format Built-in 8 kV/15 kV ESD protection Plug-and-play Rack-mountable VE814AR VE814AT Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Unit To Unit 1 x RJ-45 Female Control RS-232 Connector: 1 x Terminal Block, 3 pole Baud Rate: 57600, Data Bits:8, Stop Bits:1, no parity and flow control IR 2 x Mini Stereo Jack Female (Black) Ethernet 1 x RJ-45 Female Note: The RJ-45 ports is functional for device supporting the Ethernet port only Switches Long Reach Mode Switch 1 x Slide Switch - ON/OFF Firmware Upgrade 1 x Slide Switch - ON/OFF Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal KVM Switch & Video Video Extender

Product code: KVA-VE814A
