Aten

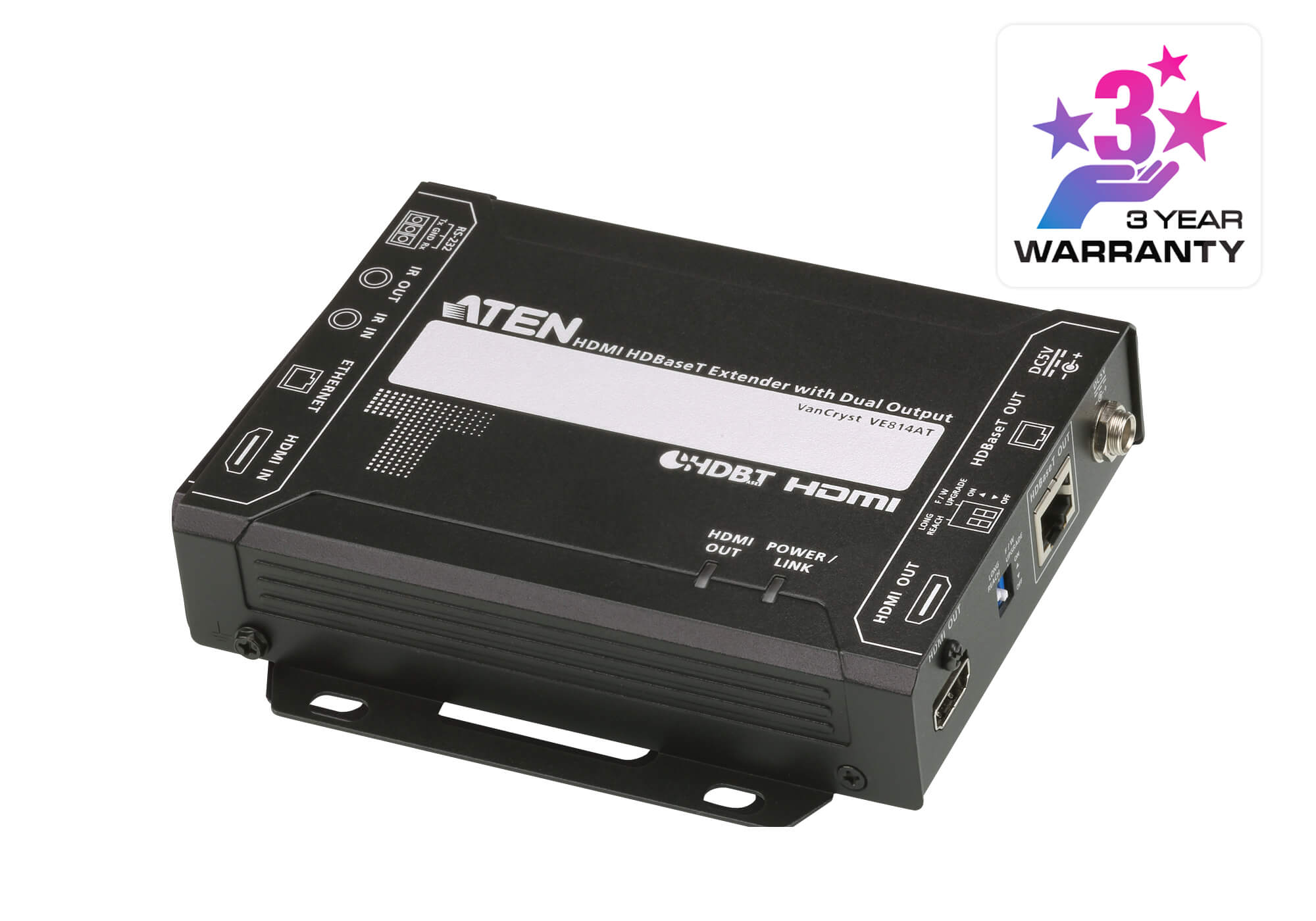

Aten HDMI HDBaseT Transmitter with Dual 4K Output, one local HDMI output, supports up to 4K@70m (Cat 5e/6) and 100m (Cat 6A), extends RS232 and IR VE814AT-ATA-U

$485.21 Inc GST

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m. Superior video quality: • 4K up to 100 m • 1080p up to 150 m when in HDBaseT Long Reach Mode ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners Supports wide screen format Built-in 8 kV/15 kV ESD protection Plug-and-play Rack-mountable Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3 m Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black) Output 1 x HDMI Type A Female (Black) Connectors Unit To Unit 1 x RJ-45 Female Power 1 x DC Jack (Black) with locking Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal KVM Switch & Video Video Extender

Product code: KVA-VE814AT
