Aten

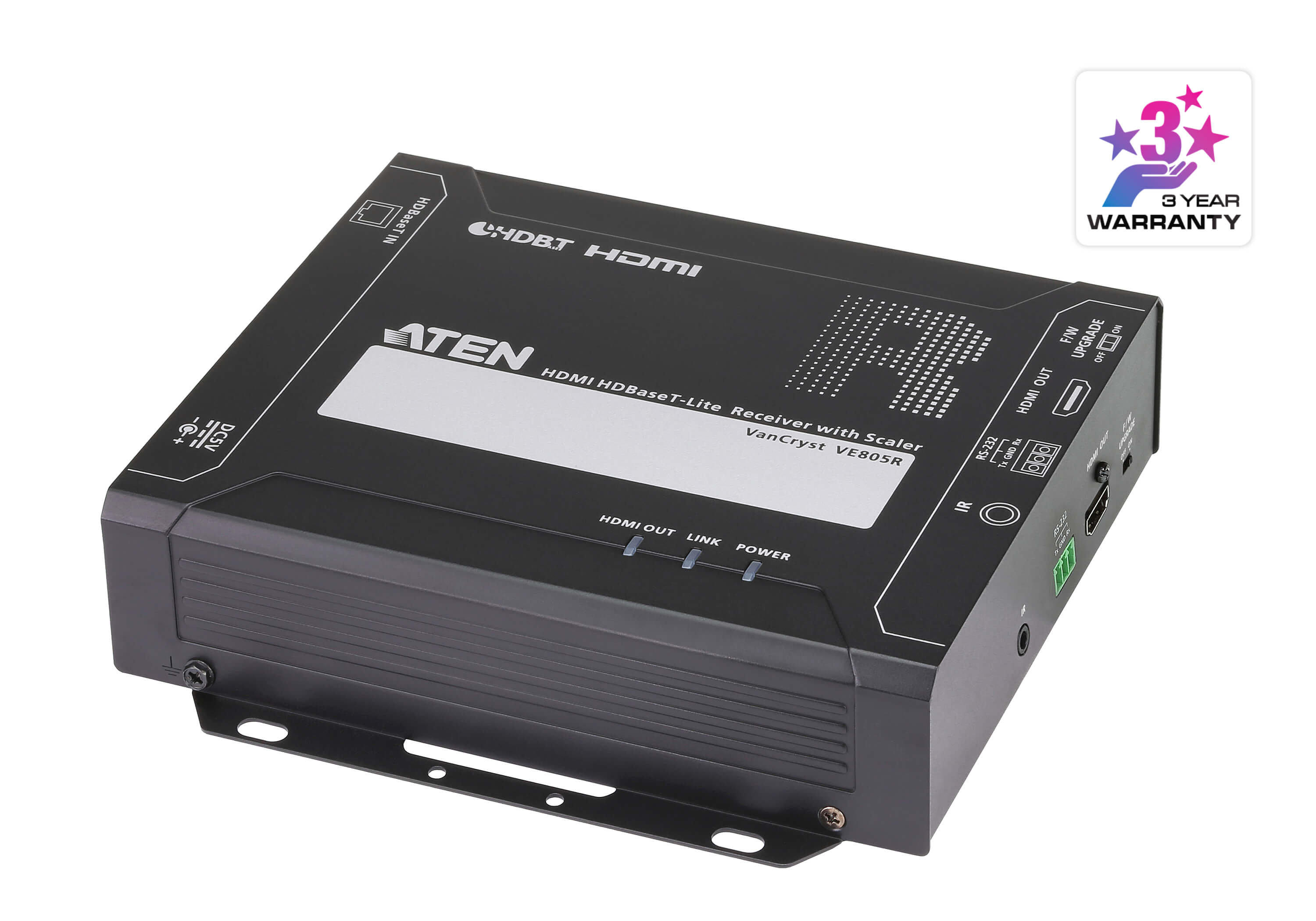

Aten VE805R-AT-U - Display - HDMI HDBaseT-Lite Receiver with Scaler, supports up to 1080p @ 70m, with IR and RS232

$1,063.92 Inc GST

Aten VE805R-AT-U - Display - HDMI HDBaseT-Lite Receiver with Scaler, supports up to 1080p @ 70m, with IR and RS232 from Internext Australia. Product type: Commercial display. MPN: VE805R-AT-U. The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend a HDMI display up to 60 m from the HDMI source device using a single Cat 5e/6 cable or up to 70 m via a Cat 6a cable. HDBaseT connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6/6a cable HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology Bi-directional RS-232 channel1 – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions2 Video Wall – features configurable Video Wall profiles available for custom screen layouts via simple point-n-click web GUI2 Bi-directional IR channel – IR transmission is processed one direction at a time3 Rack-mountable Video Input Interfaces 1 x RJ-45 Female (Silver) Impedance 100 Ω Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3 m Video Max. Data Rate 6.75 Gpbs (2.25 Gbps per lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP 1.4 Compatible HDBaseT Compatible Max. Resolutions / Distance Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a) Control RS-232 1 x Captive Screw Connector, 3 Pole IR 1 x Mini Stereo Jack Female (Black) Connectors Power 1 x DC Jack (Sliver) Switches Firmware Upgrade 1 x Slide Switch Power Consumption DC5V:8.36W:39BTU Environmental Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal KVM Switch & Video Video Extender Includes secure checkout, Australian delivery options, and Internext customer support.

Product code: KVA-VE805R
