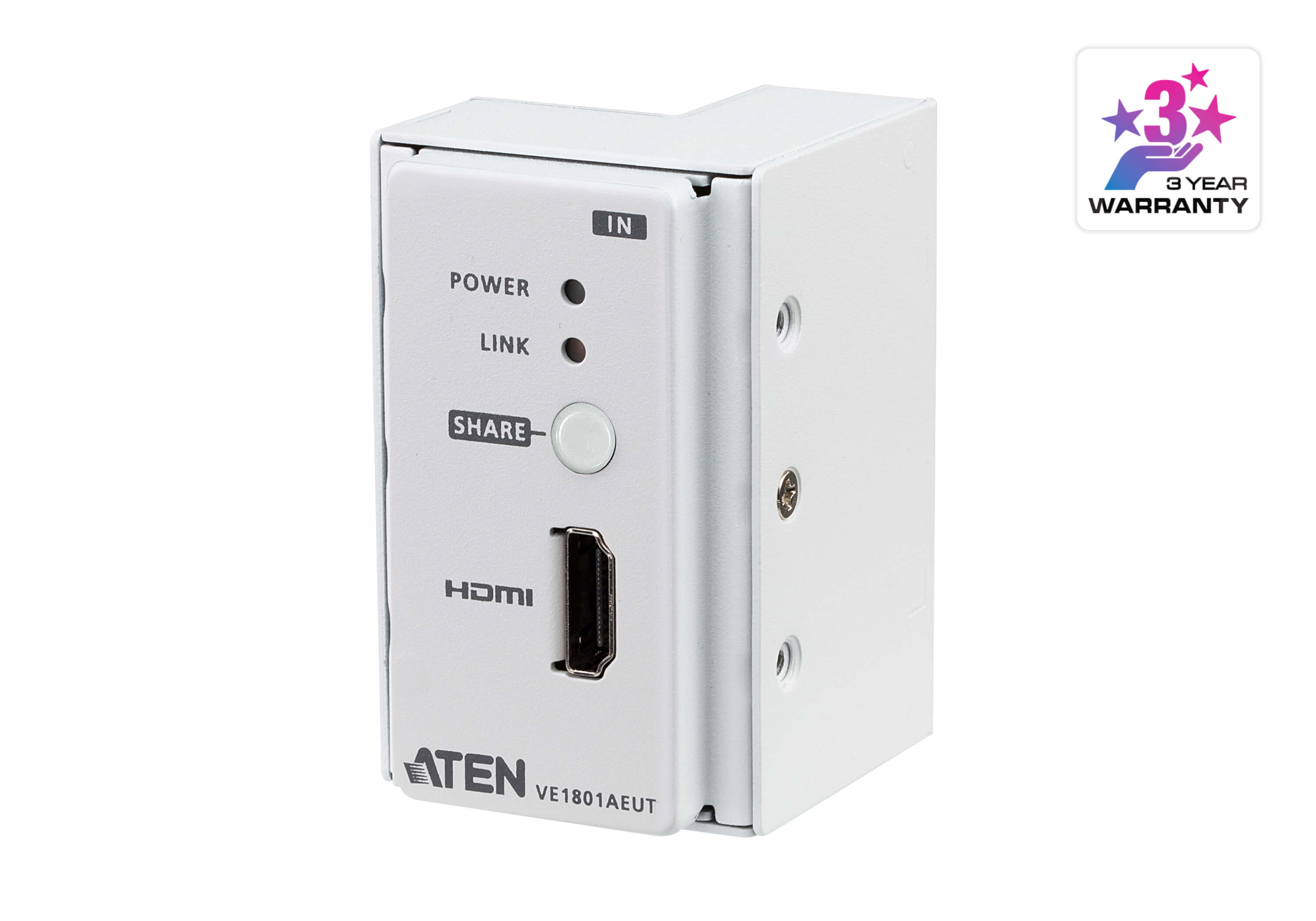

Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH, supports 4K @ 60 Hz (4:2:0) up to 40 m (Cat 6A), 1080p @ 70m (Cat 6A) VE1801AEUT-AT-U

Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH, supports 4K @ 60 Hz (4:2:0) up to 40 m (Cat 6A), 1080p @ 70m (Cat 6A) VE1801AEUT-AT-U

$369.05 Inc GST

The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension. Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable Built-in PoH (Power over HDBaseT) function – the VE1801AEUT receives power supply from the HDBaseT output port Designed to mount in a 1-gang junction box with EU wall plate Supports RS-232 channel transmission CEC allows interconnected HDMI devices to communicate and respond to a single remote control HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology Share function – the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421 LED indication of device status Supports wide screen format Built-in 8KV / 15KV ESD protection Plug-and-play Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100Ω Max. Distance 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Audio Input 1 x HDMI Type A Female (Black) Control RS-232 Channel 1 x Terminal Block (3 pole, TX/RX/GND, Green) Contact Out 1 x Terminal Block (2 pole, DO/GND, Green) Connectors Unit To Unit 1 x RJ-45 Female Power 1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH) Power Consumption DC5V:3.26W:15BTU POH:4W:19BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0% - 80% RH, Non-condensing Physical Properties Housing Metal KVM Switch & Video Video Extender

Product code: KVA-VE1801AEUT
