Aten

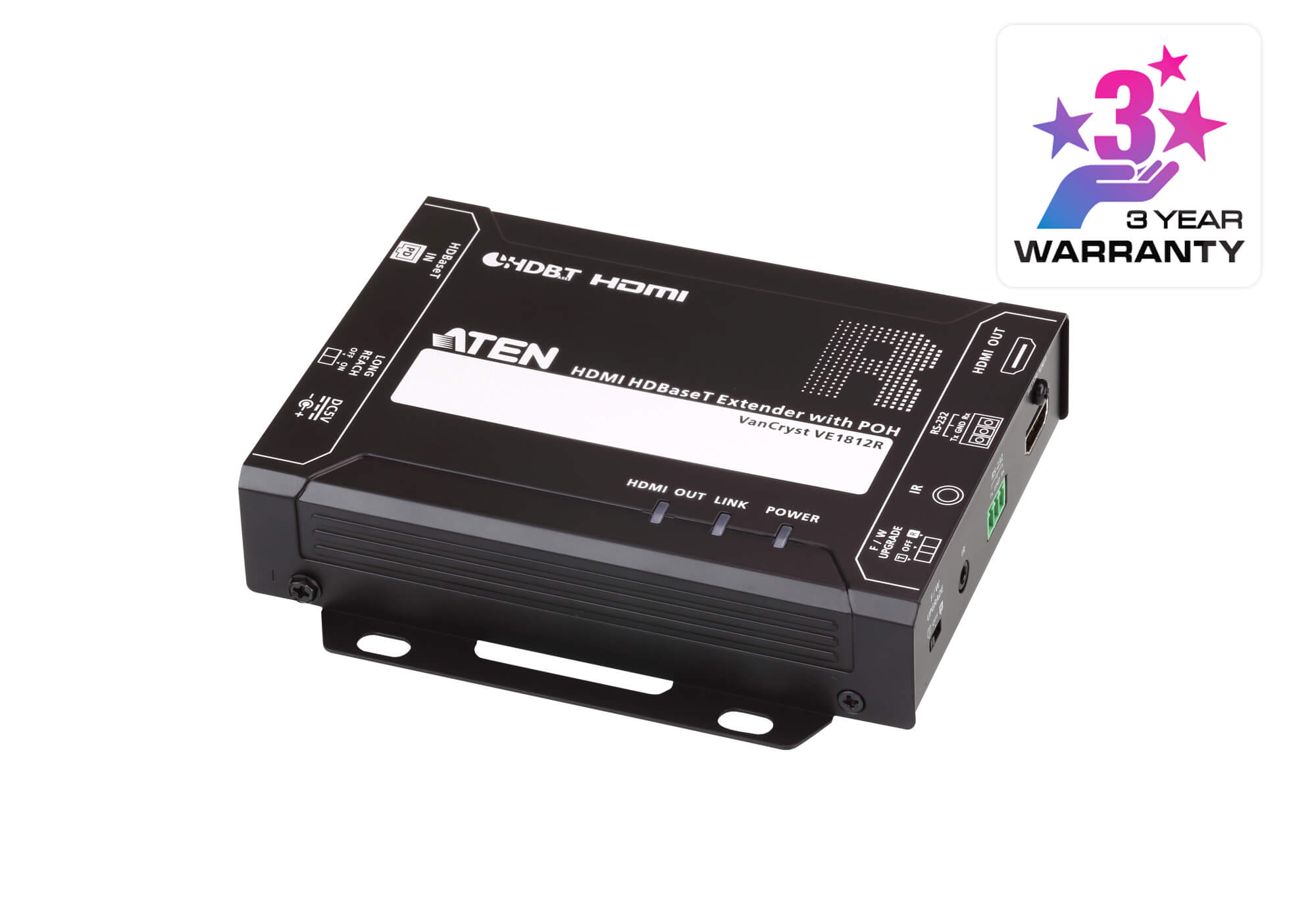

Aten HDMI HDBaseT Receiver with POH, 1080p@150m with long reach mode, 4K@100m, bi-directional RS232 and IR channel VE1812R-AT-U

$427.13 Inc GST

The VE1812R features Power over HDBaseT (PoH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing users to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time Rack- Mountable Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Output 1 x HDMI Type A Female (Black) Connectors Unit To Unit 1 x RJ-45 Female Power 1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over HDBaseT, POH) Control RS-232 Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control IR 1 x Mini Stereo Jack Female (Black) Switches Long Reach Mode Switch 1 x Slide Switch - ON/OFF Firmware Upgrade 1 x Slide Switch - ON/OFF Power Consumption DC5V:4.26W:20BTU POH:5.33W:25BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal KVM Switch & Video Video Extender

Product code: KVA-VE1812R
