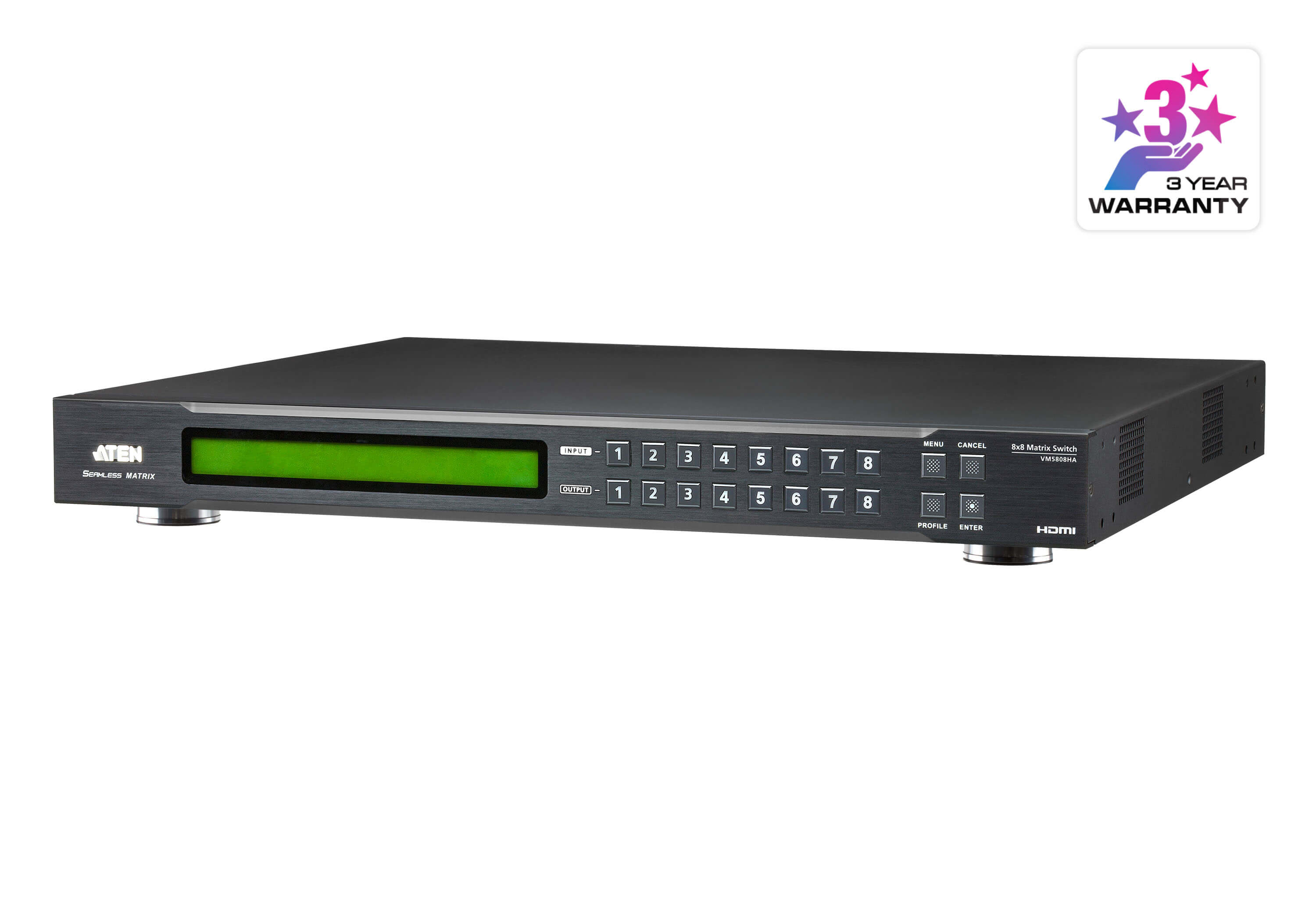

Aten 8 x 8 HDMI Matrix Switch with Scaler, Seamless Switching, FrameSync and Intuituve web GUI VM5808HA-AT-U

Aten 8 x 8 HDMI Matrix Switch with Scaler, Seamless Switching, FrameSync and Intuituve web GUI VM5808HA-AT-U

$8,228.00 Inc GST

The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located. Video Input Interfaces 8 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 5.0 m Video Output Interfaces 8 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 15 m Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) Max. Resolution Up to 1080p Max. Distance Up to 15 m Audio Output 1 x Mini Stereo Jack Female (Green) Control RS-232 Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No Ethernet 1 x RJ-45 Female EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) Power Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A Power Consumption AC110V:58.1W:272BTU AC220V:56.6W:265BTU Environmental Operating Temperature 0-40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal KVM Switch & Video Video Matrix

Product code: KVA-VM5808HA
